AWP UPS 30,000va 3 phase 3 out 240vdc

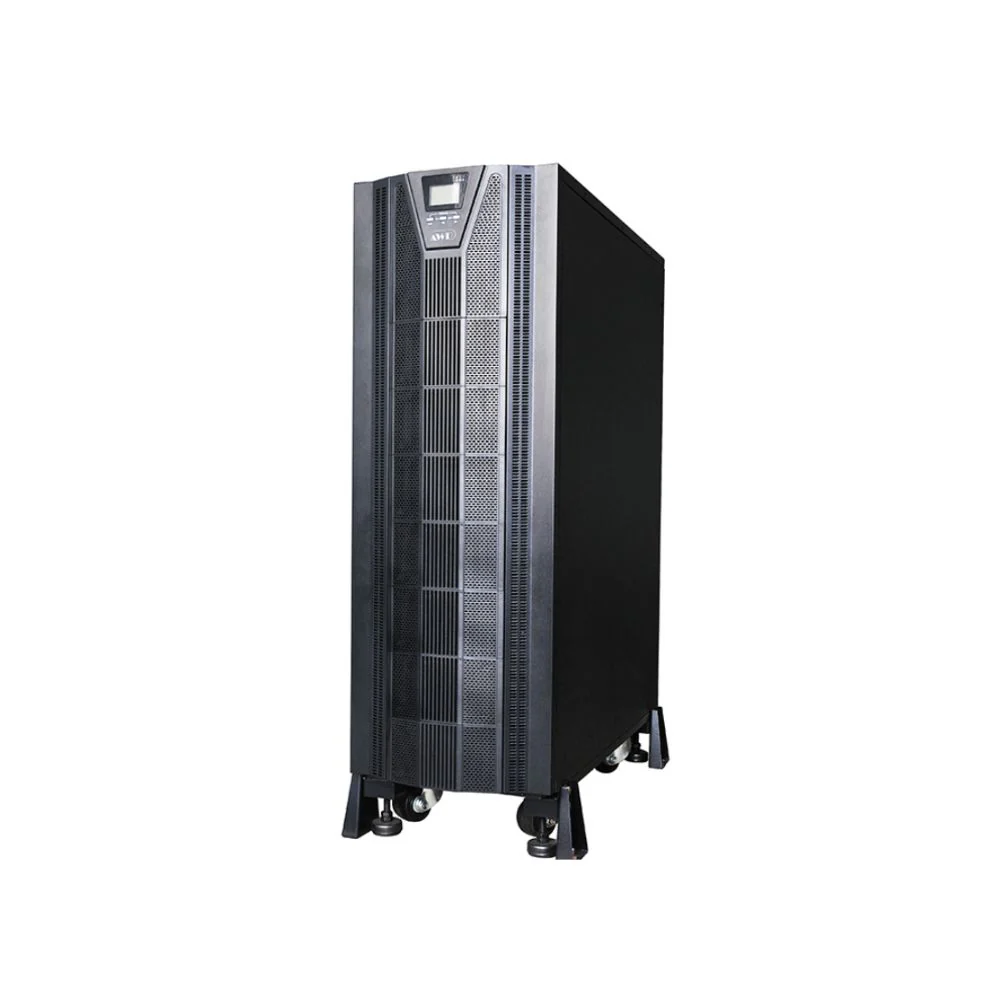

Product image 1

AWP UPS 30,000va 3 phase 3 out 240vdc

*PICTURE IS FOR REFERENCE ONLY, ACTUAL PRODUCT MAY VARY*

The AWP 3-Phase 30,000VA (30kVA) UPS is a high-capacity, online double-conversion uninterruptable power supply designed for industrial and data center environments. It operates on a 240VDC battery bus system and features a 3-phase input/3-phase output configuration.

Key Specifications
  • Capacity: 30,000VA / 27,000W (assuming a 0.9 power factor typical for this range).
  • Voltage System: 3-Phase In / 3-Phase Out (3:3).
  • Battery Configuration: Operates on a 240VDC nominal battery string (typically 20 units of 12V batteries in series).
  • Topology: True Online Double Conversion, providing a pure sine wave and zero transfer time to protect sensitive electronics.
Core Features
  • Modular Scalability: Often supports parallel redundancy (N+X) to increase capacity or reliability.
  • Advanced Control: Equipped with DSP (Digital Signal Processing) for high-speed performance and precision.
  • Cold Start Capability: Allows the UPS to power up directly from the batteries even when utility power is unavailable.
  • Communication: Standard RS232/USB ports with an optional SNMP slot for remote web-based monitoring and management.
$2,428.61

Original: $6,938.88

-65%
AWP UPS 30,000va 3 phase 3 out 240vdc—

$6,938.88

$2,428.61

Product Information

Shipping & Returns

Description

*PICTURE IS FOR REFERENCE ONLY, ACTUAL PRODUCT MAY VARY*

The AWP 3-Phase 30,000VA (30kVA) UPS is a high-capacity, online double-conversion uninterruptable power supply designed for industrial and data center environments. It operates on a 240VDC battery bus system and features a 3-phase input/3-phase output configuration.

Key Specifications
  • Capacity: 30,000VA / 27,000W (assuming a 0.9 power factor typical for this range).
  • Voltage System: 3-Phase In / 3-Phase Out (3:3).
  • Battery Configuration: Operates on a 240VDC nominal battery string (typically 20 units of 12V batteries in series).
  • Topology: True Online Double Conversion, providing a pure sine wave and zero transfer time to protect sensitive electronics.
Core Features
  • Modular Scalability: Often supports parallel redundancy (N+X) to increase capacity or reliability.
  • Advanced Control: Equipped with DSP (Digital Signal Processing) for high-speed performance and precision.
  • Cold Start Capability: Allows the UPS to power up directly from the batteries even when utility power is unavailable.
  • Communication: Standard RS232/USB ports with an optional SNMP slot for remote web-based monitoring and management.
